322D AIR LEG DRILL



   322D Leg Drill medium-sized drills for horizontal drilling. This drill is suitable for mining, tunnelling, construction and civil engineering, etc. It is light, has great performance and easyy to use and maintain.

- High drilling speed
- Ease of operation
- Durability and continuous high performance
- Light support leg providing stable feed pressure

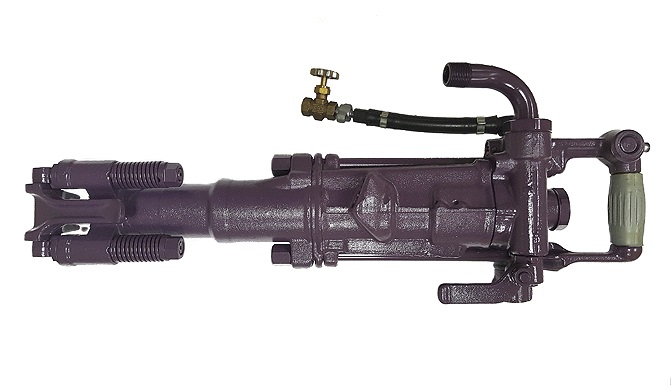

 Furukawa 322D Air Leg Drill



Specifications

Shank Number
of
blows		 Weight
(KG)		 Length
overall
(mm)		 Inside
diameter
of air hose
(mm)		 Inside
diameter
of water
hose
(mm)		 Air
consumption
(m3/min)		 Leg
used
H22 X 108 1,850 26.9 705 19(R3/4) 13(R3/8) 3.5 LB56



* Above information(with photos) are mentioned on the FRD Air Leg Drill brochure. Please do not hesitate to send us an inquiry for the parts list and some more details.

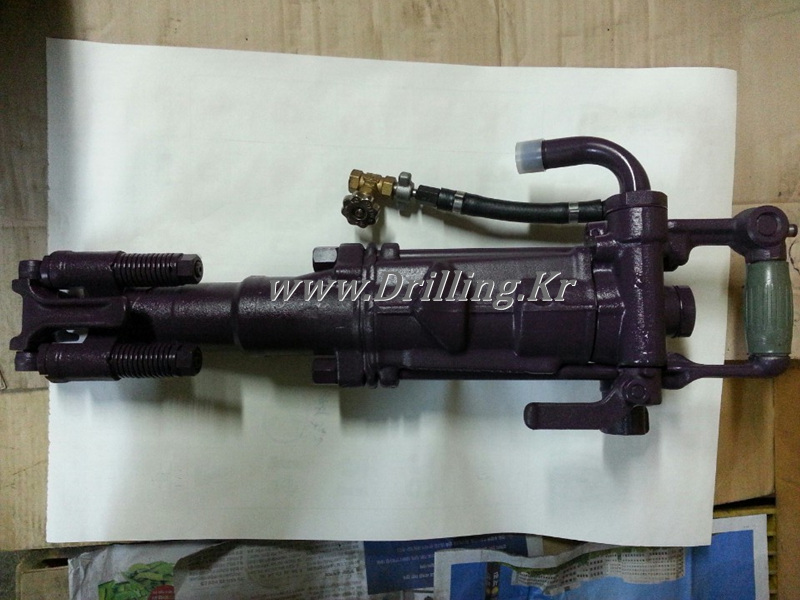

Furukawa 322D Leg Drill

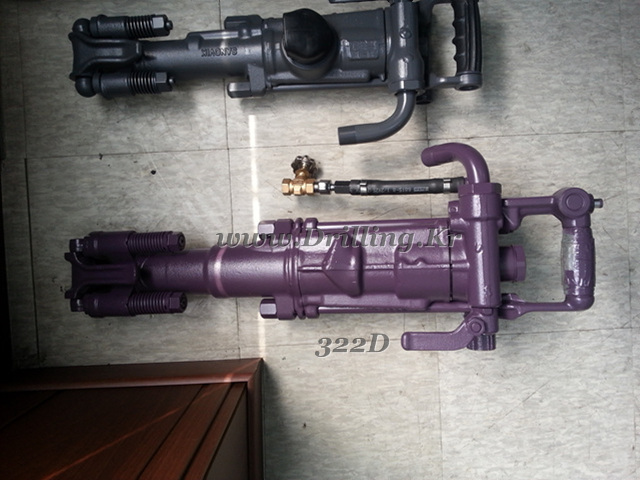

Furukawa 322D Leg Drill
