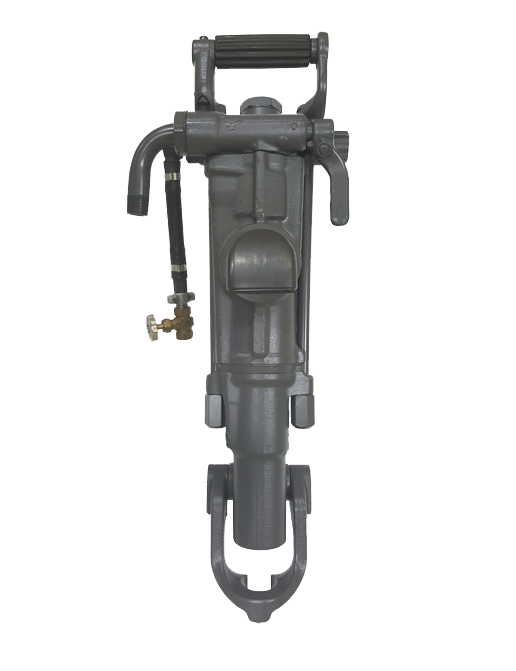

TY280-LD Leg Drill and Support Leg
Specifications
Model |
Unit | TY280-LD |
| Overall length |
mm | 615 |
| Weight of drill |
kg | 27 |
| Number of blows |
bpm | 2300 |
| Air consumption |
m3/min at 5 bar |
3.5 |
| Shank size |
mm | H22 X 108 |
| Cylinder diameter |
mm | 85 |
| Piston stroke |
m/m | 60 |
| Type of blow | Air / Wet | |
| Support Leg | XSL40-SL | |
Support Leg
Model |
Unit | XSL40-SL |
| Overall length |
mm | 1750 |
| Extension length |
mm | 1210 |
| Feed length(max) |
mm | 2960 |
| Weight of support leg |
kg | 15.2 |
| Feed Cylinder diameter |
mm | 62 |
